Mugen 2 & Mugen 2 Rev.B Compatibility List

[evillman]

Is Mugen 2 Rev. B Compatible with Asus Maximus III Formula?

[Frankie367]

Hi people!

Is the Mugen 2 Rev.B compatible with the Asus Rampage 3 extreme???

[Okiwana Okimoto]

Hello Frankie367,

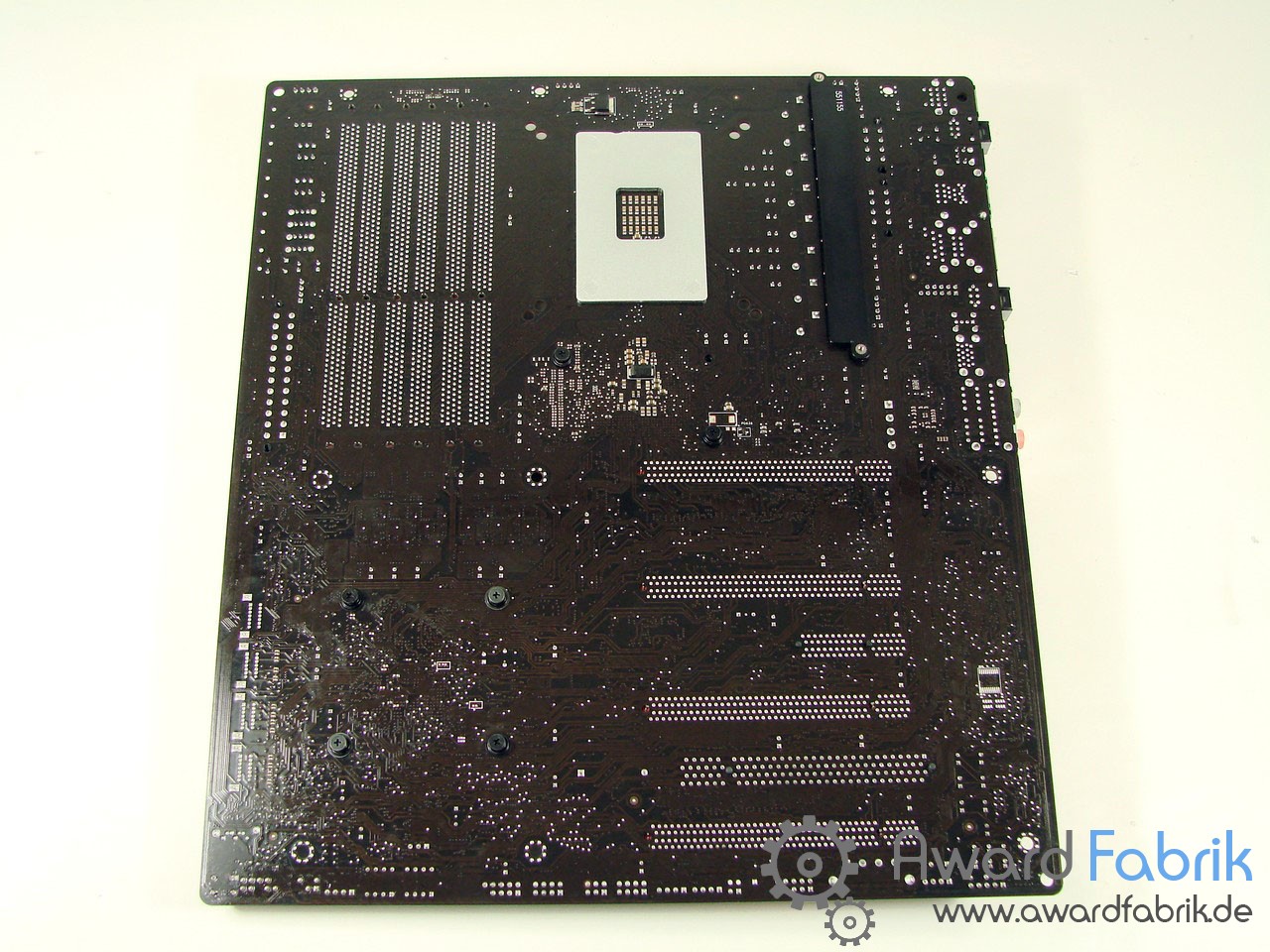

I don´t think so. Asus Rampage 3 Extreme has a chip on backside - http://www.awardfabrik.de/images/sto.../review/15.jpg

This Chip should blocking our Mugen 2 Backplate.

Regards,
OKI

[Frankie367]

Originally Posted by Okiwana Okimoto

Hello Frankie367,

I don´t think so. Asus Rampage 3 Extreme has a chip on backside - http://www.awardfabrik.de/images/sto.../review/15.jpg

This Chip should blocking our Mugen 2 Backplate.

Regards,
OKI

Hello Okiwana Okimoto,

thank you for your helpful answer!

I have written up sometimes the Scythe Support and asked what one can make there and there one gave to me the friendly instruction this the problem would be known and other users before the same problem stood, the "Noctua Mounting Kit NM-I3 - bases 775/1156/1366"
Caseking.de » CPU-Kühler » Fan-Adapter & Retention-Module » Noctua Mounting Kit NM-I3 - Sockel 775/1156/1366
for it have used. Have to me the ordered now and I will test.Images follow with success.
Maybe this interests somebody wants to use"R3E+Mugen 2 Rev.B"!

MFG
Frankie

[wanner]

Can anyone confirm if Mugen 2 rev B will works with my case and motherboard

Motherboard: gigabyte ga-890gpa-ud3h
Case: Fractal Design R2 (Define R2, Black Pearl - Fractal Design

Thanks!

[Oli]

Google finds this: http://austrianotaku.com/wp-content/...en2_revb_2.jpg

So it fits with the usual comments on fan and RAM. On the pic Mugen 2 is mounted with the long side parallel to the PCI slots. The most likely setup is parallel to the ATX I/O panel. With this mounting you will gain some space but the fan will hang above at least one RAM slot anyway when mounted on RAM side of Mugen.

[donminhgo]

Hi Everyone,

does my mugen 2 support the following board:
Gigabyte GA-P55-USB3.

Thx in advanced

[olger901]

Is it cooler compatible with the Asus M4A87TD/USB3 motherboard?

[soundklinik]

Hello, i just ordered Mugen 2 on this board: ASUS M4A77D (AMD 770) - ATX
Is it compatible? Let me know please, so I can cancel if negative...
All best

Sorry if this is wrong forum

[Oli]

Please use the compatibility threads for questions like this. I'll ask the admin to move your post.

Google shows some people using this combination so it should fit. Always remember the generic info on fan and RAM issues (sticky thread). This is true for almost any mainboard.

Fans on big coolers like Mugen 2 will virtually ever cover at least one RAM slot when mounted on RAM side. But i commented on that in the thread i referred to.

Also production details of boards can be changed so that parts on the backside could interfere with Mugen's backplate. But this is only true in very rare cases.
