02-04-2009, 04:48 PM
|
|||
|
|||
Gigabyte GA-EX58-UD4
Hi, i just want to let you know that Scythe Mugen 2 fits on Gigabyte GA-EX58-ED4. I mounted it in the position in which the longer side (if watching from the top of the cooler) is in vertical position (see pictures) but it will also fit in the other direction. No collision with mosfet or northbridge heatsnks but the first two RAM slots (counting from the CPU) are covered by fan, but not the heatsink of Mugen 2(if the orientation is like on pics and the fan is mounted to blow air to the back of the case, if not the cooler's heatsink will block the ram slots, not to mention fan). But the memories could be seated in the covered sockets, but it ill require demountig of the fan (or the whole cooler, if other orientation). Then there is some little space between fan and the memories (see pisc).
p.s also i think that it will fit on GA-EX58-UD4P because the pcb is nearly the same mostly near the cpu socket. Sorry about poor quality of photos, but i have not a a camera right now (broken) so i took it only by a phone.
|
He had to mount it so it blows upwards but that's only because of his case, which has the psu mounted at the top.
|
02-05-2009, 01:08 AM
|
|||
|
|||
|
Hallo,
passt Scythe Mugen 2 auf das GigaByte GA-MA790GP-DS4H,mit 8GB arbeitsspeicher also alle speicherbänke sind belegt
|
|
02-05-2009, 10:57 AM
|
||||
|
||||
|
@Dulus: Thanks for the info and the pics!
@Gendo: Thanks for the info! @Tiger: Wenn du keine hohen Heatspreader benutzt, passt der Mugen 2.
__________________
|
|
02-05-2009, 11:13 AM
|
|||
|
|||
|
Hallo hiroshige,

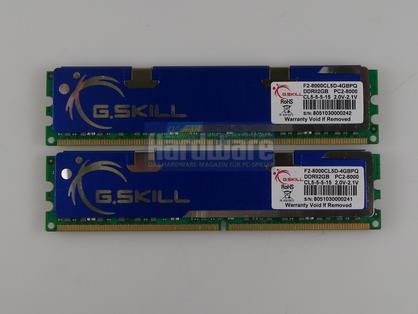

danke für antwort hab die hier http://www.pcgameshardware.de/screen...0916102324.JPG
|
|
02-05-2009, 11:28 AM
|
||||
|
||||
|
Die sind kein Problem. Probleme machen Dimensionen wie bei Dominator oder Reaper.
__________________
- All comments relating to mainboard / cooler / case compatibility are based on "best guess". -
- Aussagen zur Kühler-Kompatibilität basieren auf unverbindlicher, persönlicher Einschätzung. - Push Postings will be deleted without notice.
|
|
02-05-2009, 11:33 AM
|
||||
|
||||
|
Hallo Tiger,
wie bereits gesagt: Passt! Viele Grüße, Stefan
__________________
|
|
02-05-2009, 04:49 PM
|
|||
|
|||
|
So der Mugen2 passt ohne Probleme auf ein MSI P45 Neo3-FR Board. Egal in welcher richtung. Nur grosse RAM riegel sollte man nicht verwenden so wie etwa solche OCZ Reaper HPC Edition DIMM Kit 4GB PC2-8500U CL5-5-5-18 (DDR2-1066) (OCZ2RPR10664GK) Preisvergleich bei Geizhals.at Deutschland. Alles andere geht.
|
|
02-05-2009, 04:51 PM
|
||||
|
||||
|
Hallo Captain (!) JackSparrow,
danke für die Info! Viele Grüße, Stefan - Scythe EU Hamburg
